STAND ALONE PUMPING STATION DISTRIBUTION PANEL LAYOUT DRAWING
STAND ALONE PUMPING STATION PANELS PANELS
The Stand Alone Pumping station is shown here in three parts:

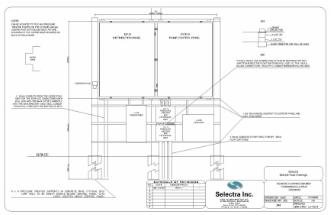

COMBINED LAYOUT MOUNTING DETAIL
AutoCad DRAWINGS
The Distribution panel contains a service entrance breaker and utility metering. Other equipment includes manual transfer switch, lighting circuit breaker, and lighting panel.
|
|
|
|

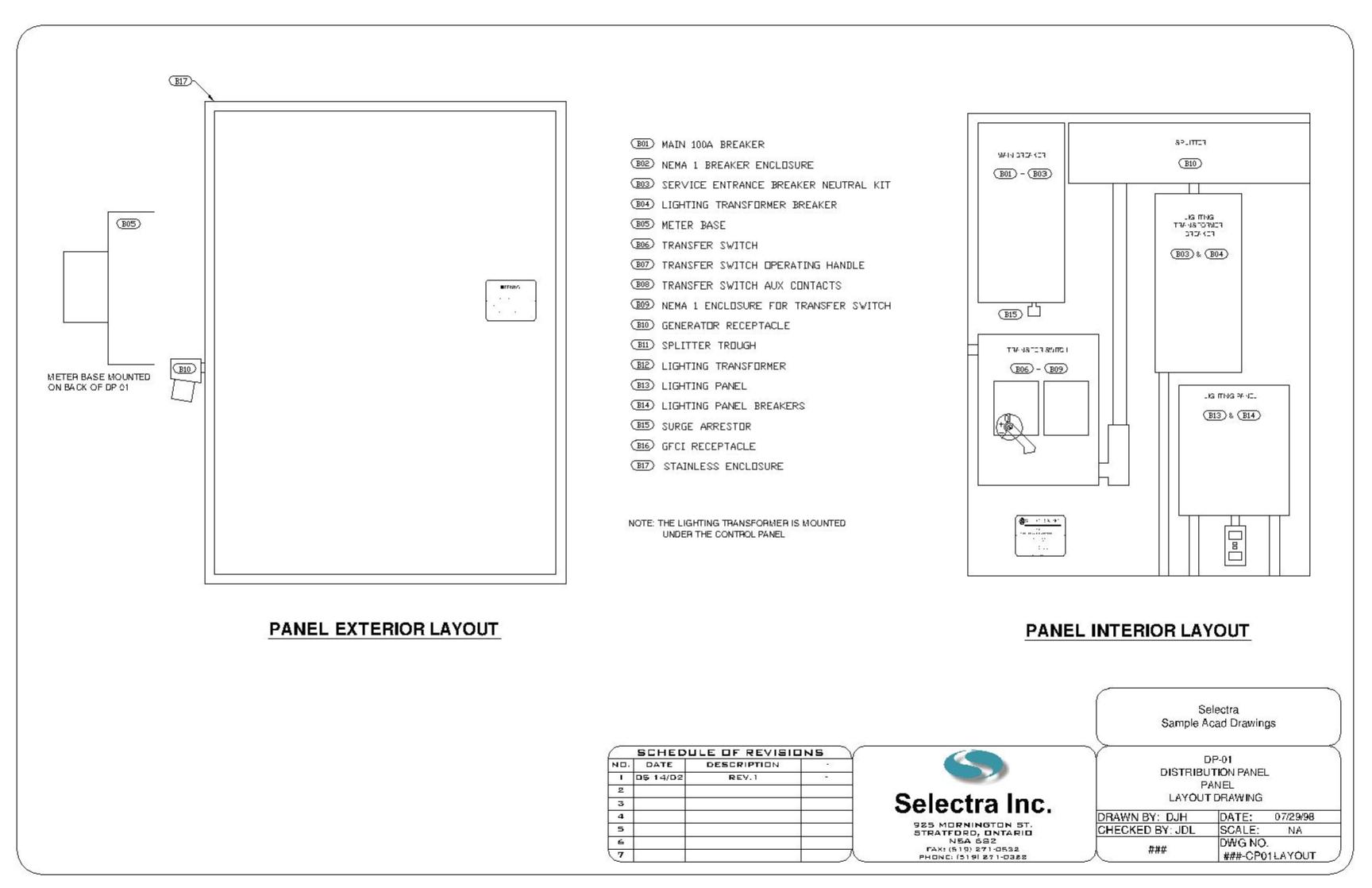

STAND ALONE PUMPING STATION DISTRIBUTION PANEL LAYOUT DRAWING |
PANEL PICTURES
|
|
|
|

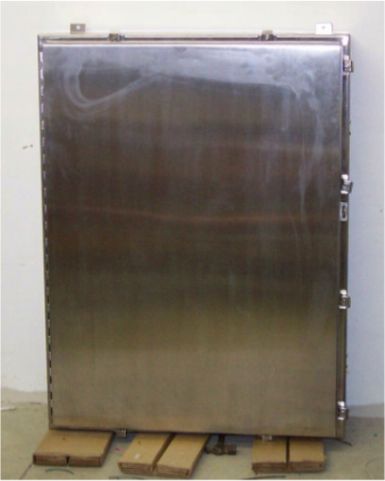

STAND ALONE PUMPING STATION PANEL OUTSIDE APPEARANCE |

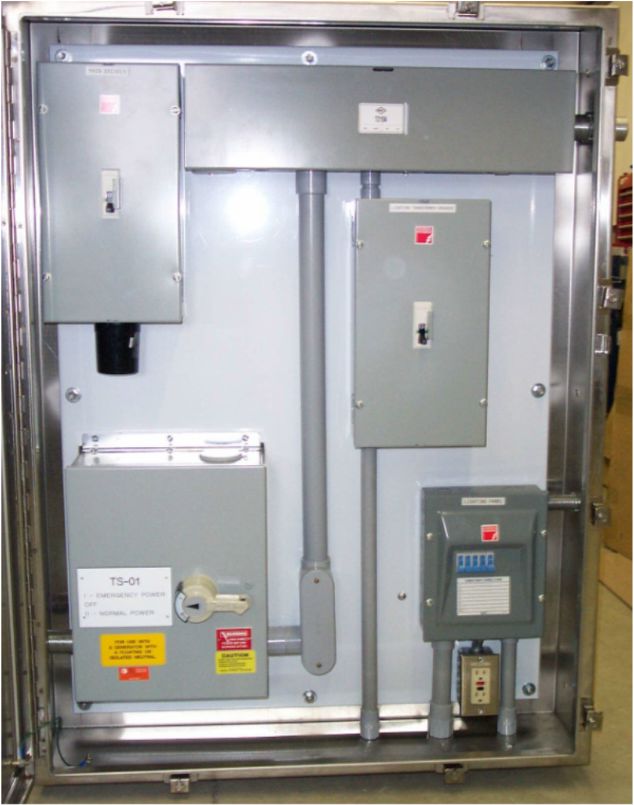

STAND ALONE PUMPING STATION DISTRIBUTION PANEL |
The Pump Control Panel is designed to run two pumps a capacitor contactor and a spare starter for a future ventilation fan. All pilot operators and breaker operators are mounted on a custom installed inner door to protect them from the weather. Both panel look the same from the outside.
|
|
|
|

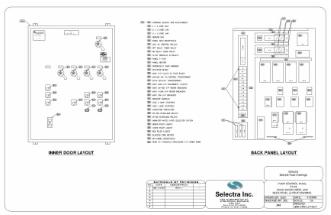

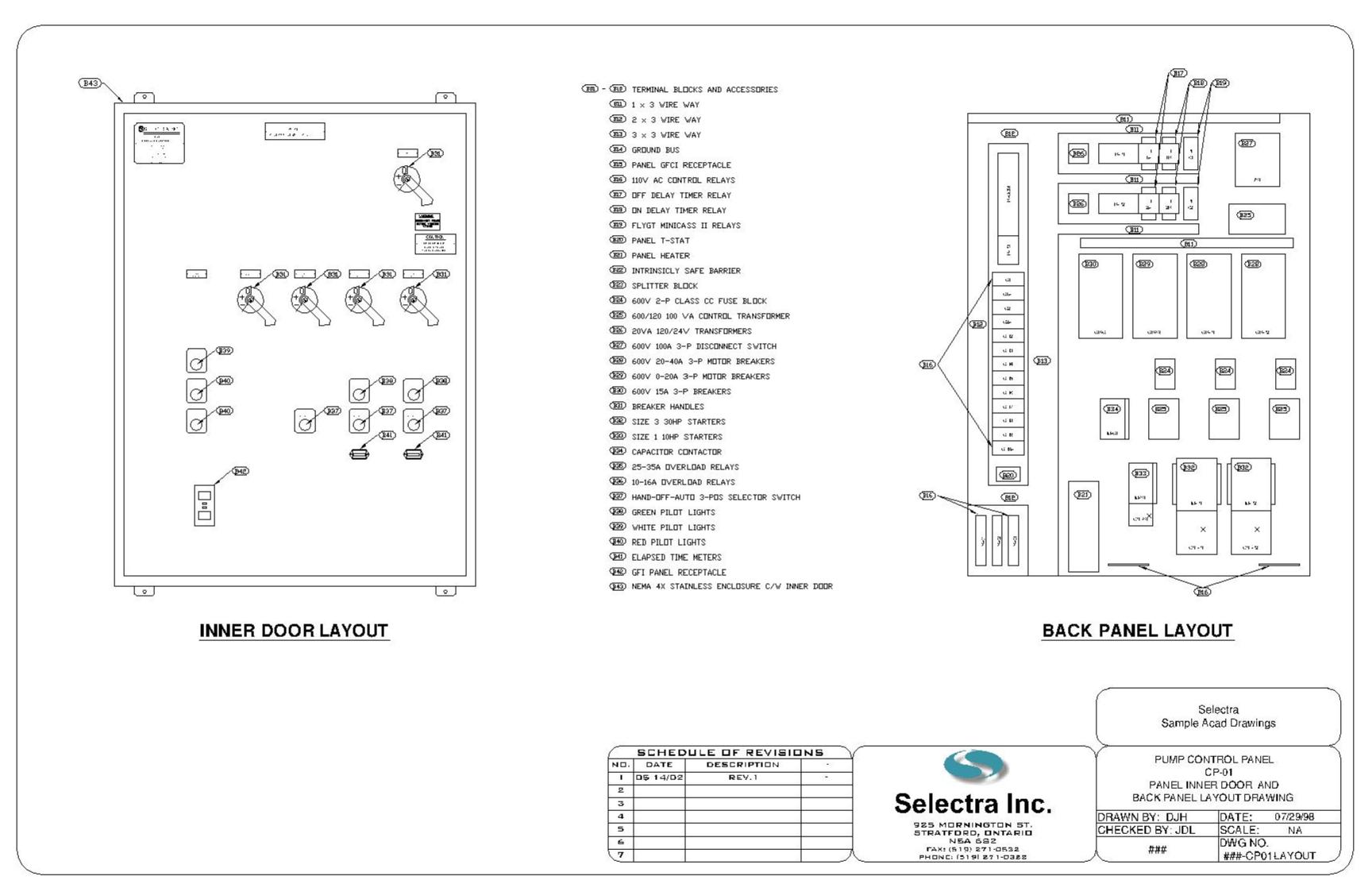

STAND ALONE PUMPING STATION PUMP CONTROL PANEL LAYOUT DRAWING |

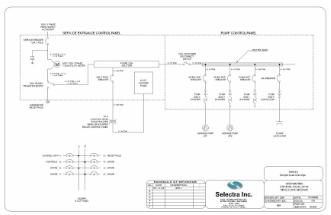

STAND ALONE PUMPING STATION PUMP CONTROL PANEL ELECTRICAL WIRING DIAGRAM |
PANEL PICTURES
|
|
|
|

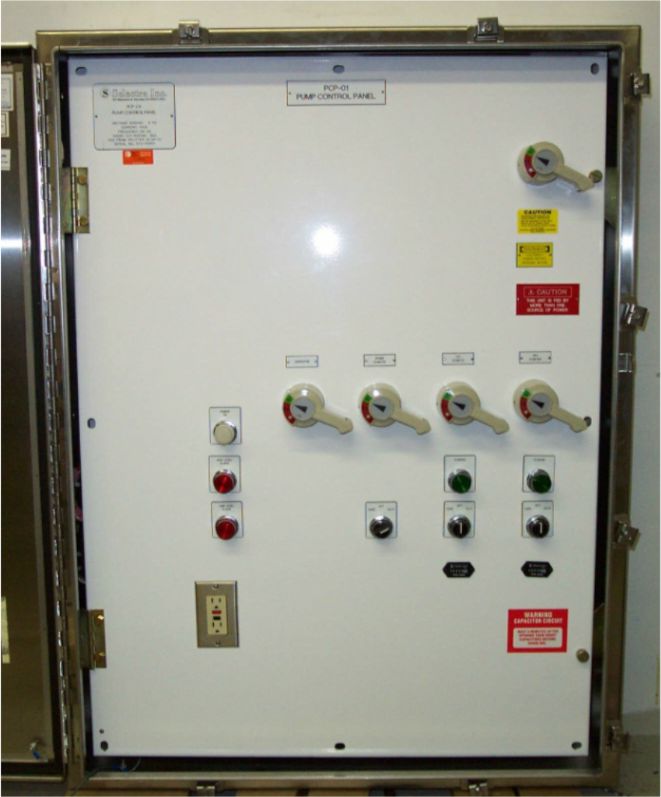

STAND ALONE PUMPING STATION PUMP CONTROL INNER DOOR |

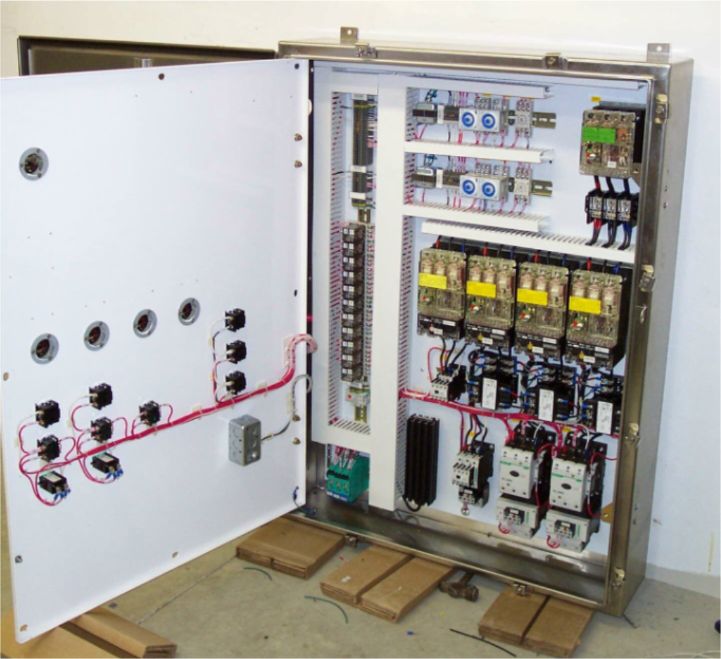

STAND ALONE PUMPING STATION PUMP CONTROL INNER LAYOUT |
STAND ALONE PUMPING STATION PUMP CONTROL INNER LAYOUT
|
|
PANEL PICTURES NOT AVAILABLE
